Cutting tools are the teeth of modern industry and are indispensable in mechanical processing.
Carbide cutting tools have strong comprehensive properties, combining hardness and toughness. Cemented carbide has high strength and high wear resistance. It is an alloy material composed of refractory metal carbide as the main component and metal that acts as a bonding phase. Compared with tool steel, cemented carbide has higher hardness, wear resistance and red hardness; compared with ceramics and superhard materials, cemented carbide has higher toughness. Since cemented carbide has good comprehensive properties, it is widely used in steel (P), stainless steel (M), cast iron (K), non-ferrous metals (N), heat-resistant steel (S) and hardened steel (H) materials. processing. With the optimization of important processes for tool production such as mixture preparation, molding sintering, grinding and coating, cemented carbide is widely used in the production of cutting tools and inserts. According to statistics from the China Machine Tool Industry Association, the main types of carbide tool products include carbide inserts, milling tools, turning tools, hole processing tools, etc., of which the highest proportion is used to make inserts, close to 50%.

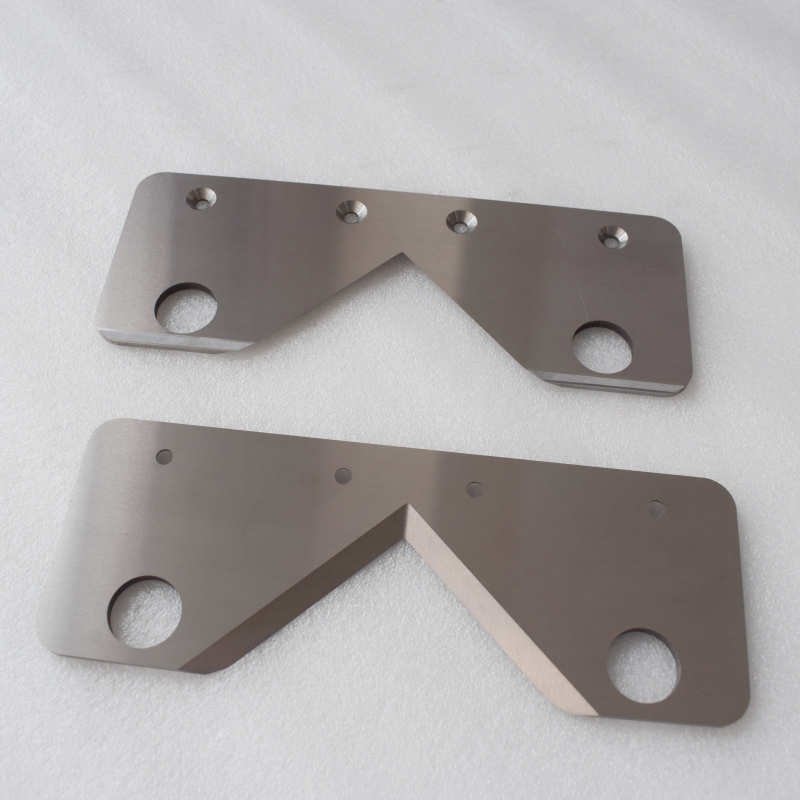

The Carbide CR013X tool we produced for our Dutch customer was delivered perfectly.
|
1、物理特性·Mechanical property:
|
|
检测项目Test Item
|
检测依据 Test Standard
|
检测结果 Test Result
|
|
钴磁 Com
|
GB/T 23369-2009
|
10.7
|
%
|
|
密度 Density
|
GB/T 3850-2015
|
12.60
|
g/cm³
|
|
硬度 Hardness
|
GB/T 7997-2014
|
1443
|
HV10
|
|
矫顽磁力 HC
|
GB/T 3848-2017
|
13.8
|
KA/m
|
|
横向断裂强度 TRS
|
GB/T 3851-2015
|
2100
|
N/mm2
|
2、金相组织MicroStructure: 检测依据TestStandard：GB/T 3489-2015 ,GB/T 34488.2-2018
|
检测项目
|
孔隙度 Porosity
（100X）
|
孔洞（μm）
Pore Size
|
非化合碳C-uncom bined
carbon
|
η 相
η Phase
|
WC 晶粒度（μm）
Grain Size of WC
|
|
A 类
A-Pore
|
B 类
B-Pore
|
25-75
|
75-125
|
≥125
|
|
检测结果
|
A02
|
B00
|
/
|
/
|
/
|
C00
|
/
|
1.0
|
