Home > All Collections > Tungsten Carbide Nozzles > Zhuzhou Century Tool Manufacturer PCD Carbide YG6 YG8 K10 K20 Tungsten Solid Carbide Nozzle For Sand Blasting Bit Tricone Bit Nozzles

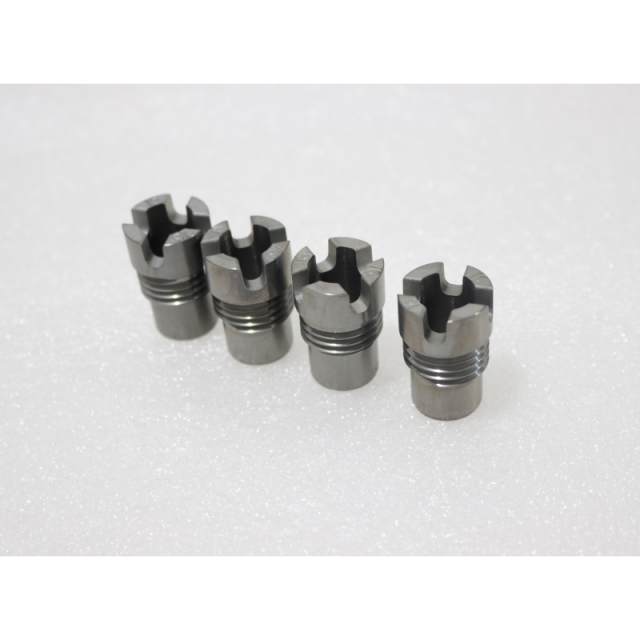

Zhuzhou Century Tool Manufacturer PCD Carbide YG6 YG8 K10 K20 Tungsten Solid Carbide Nozzle For Sand Blasting Bit Tricone Bit Nozzles

Name: Zhuzhou Century Tool Manufacturer PCD Carbide YG6 YG8 K10 K20 Tungsten Solid Carbide Nozzle For Sand Blasting Bit Tricone Bit Nozzles
Brand: Zhuzhou Century Tool Co., Ltd
Availability: InStock
Rating: 5 (1 reviews)

OEM PDC drill nozzle/ Customized tungsten carbide Nozzle wear-resistan nozzle non-standard special-shaped fittings

Get A Quote

Add to Quote List View Quote List

SPECIFICATION

OEM PDC drill nozzle/ Customized tungsten carbide Nozzle wear-resistan nozzle non-standard special-shaped fittings

Tungsten carbide is one of the most commonly used materials because it offers the best value when compared to other materials. Nozzles made form tungsten carbide are among the most rugged and durable and work well with most abrasives. Due to their wear-resistance and impact resistance, tungsten carbide nozzles are best used in harsh work site conditions.

Grade	Bending strength	Hardness	Desity	Linear	Suitable Medium
	(≥N/mm2)	(≥HRA)	(g/cm³)	Bulge
				Modulus
YWN6	1500	89	14.5-14.9	5.2	Oil,Sewerage, Acid, Alkli, Fat, Fluidify
YWN8	1650	88	14.4-14.8	5.3	Hydrocarbon,Strong Alkali With Grain
YWN10	2100	87	14.5-14.9	5.3
YG6	1550	89.5	14.7-15.1	5	Oil,Sewerage, Soft Acid or Alkli, Fat,
YG6	1550	89.5	14.7-15.1	5	Fluidify
YG8	1700	89	14.6-14.9	5.1	Hydrocarbon,Medium With Grain
YG13	2400	88	13.9-14.2	6	Gas seal of compressors
YG15	2500	87	13.9-14.2	6.3	Gas seal of compressors
YT10	1700	89	13	6	Oil,Sewerage, Soft Acid or Alkli, Fat,
TN80	1450	89	7	7.8	Fluidify Hydrocarbon,Medium With Grain
	60KG
Key Selling Points	Easy to Operate
Applicable Industries	Machinery Repair Shops, Machinery

Zhuzhou Century Tool Co., Ltd. is specialized in manufacturing and selling mechanical blades, various types of molds, and customized products. Our market covers more than 50 countries and regions worldwide. With years of experience in production and marketing, advanced production equipment, as well as highly trained technical personnel and operators, Zhuzhou Century Tool Co., Ltd. specializes in producing high-quality hard alloy CNC blades, saw blades, cutting blades, mining tools, mold materials, rods, non-standard shaped high-end wear-resistant parts, and many other products that are widely used in metallurgy, machinery, geology, coal, petroleum, chemical, and other industries. We provide Chinese and global users with cost-effective cutting machine tools and new materials and solutions for extreme working conditions. We sincerely appreciate the trust and support of our new and old customers over the years and solemnly promise to improve product quality and service.
