Overview

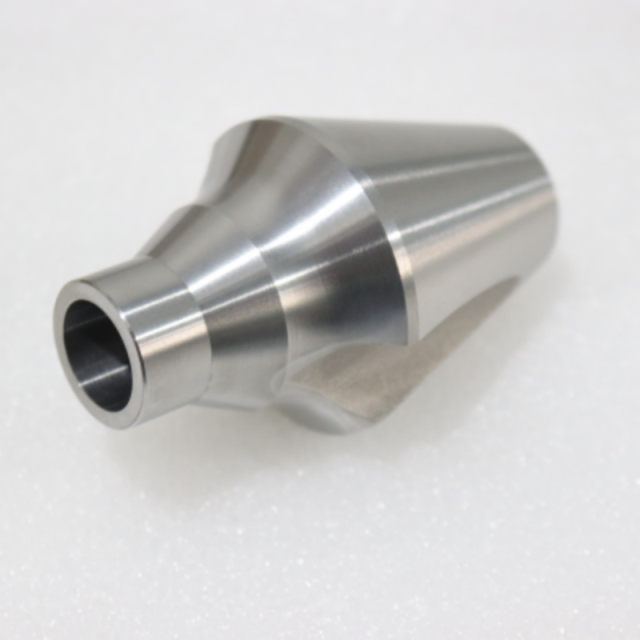

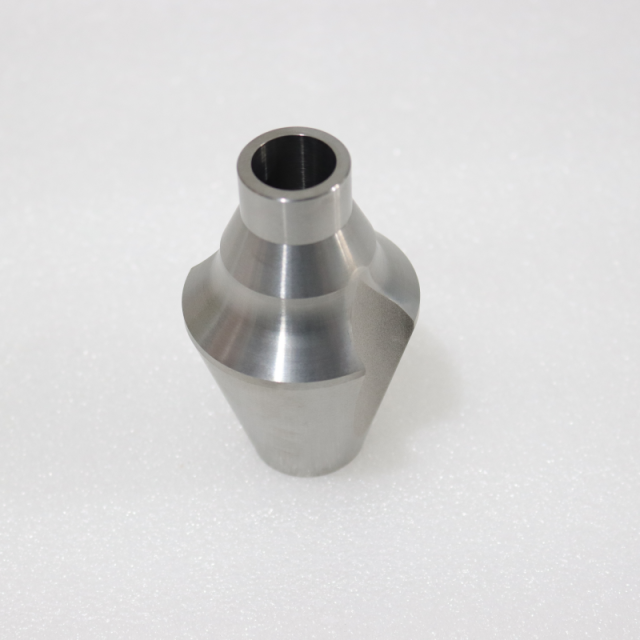

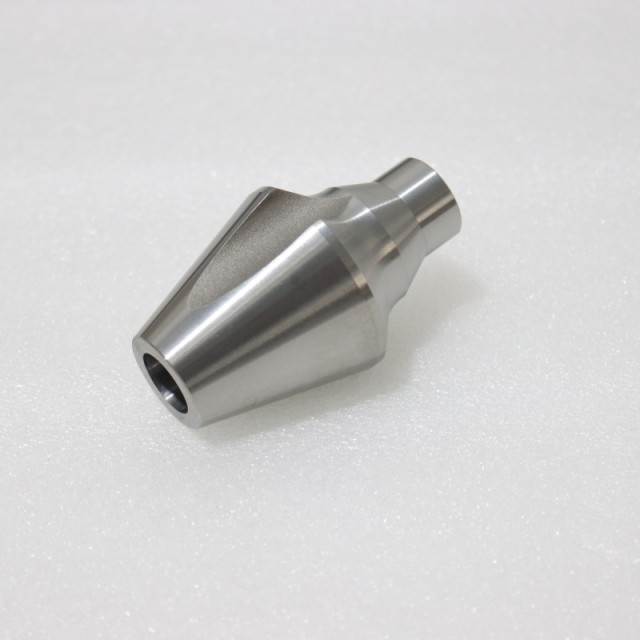

In the demanding environment of modern oil and gas drilling, achieving operational efficiency and minimizing downtime are paramount. Measurement-While-Drilling (MWD) and Logging-While-Drilling (LWD) systems are critical technologies that provide real-time data on borehole trajectory, tool status, and formation characteristics, enabling precise well placement and risk mitigation. The heart of these sophisticated systems lies in robust, reliable components capable of withstanding extreme downhole conditions. Zhuzhou Century Tool Co., Ltd. addresses this critical need with its high-performance Cemented 6% -9% Nickel Poppet Orifice and Tungsten Carbide Shroud & Liner Assemblies, engineered specifically for MWD/LWD pulser systems, vertical/horizontal drilling tools, hydraulic oscillators, and related downhole equipment.
Core Advantages: Engineered for Extreme Conditions
The effectiveness of MWD/LWD systems hinges on the consistent generation and transmission of mud pulse signals. This process subjects critical components like poppet valves and protective shrouds to severe challenges:
- Intense Pressure & Temperature: Downhole environments present extreme hydrostatic pressures and fluctuating high temperatures.
- Abrasive Erosion: Drilling mud laden with cuttings creates a highly abrasive fluid stream.
- Cyclic Stresses: The rapid opening and closing of poppet valves generate significant mechanical stress.
Zhuzhou Century Tool's solutions are meticulously designed to overcome these challenges:
- Superior Material Science: The Cemented 6% -9% Nickel Poppet Orifice leverages the exceptional properties of nickel-base alloys. This translates to:
- High Temperature Resistance: Maintaining structural integrity and dimensional stability in thermally demanding downhole environments.
- High Pressure Resistance: Withstanding the immense hydrostatic pressures encountered at depth without deformation or failure.
- Exceptional Erosion Resistance: Significantly reducing wear caused by abrasive drilling fluids, extending component lifespan and maintaining signal clarity.
- Good Toughness: Providing the necessary resilience to absorb impact and cyclic:** These orifices play a vital role in:
- Mud Flow Diversion: Precisely directing drilling fluid flow to generate pressure pulses.
- Erosion Protection: Shielding sensitive internal components of the pulser system.
- Mud Sealing: Ensuring reliable sealing integrity for consistent pulse generation.
- Signal Generation: Acting as the key mechanism for creating the pressure differentials that encode downhole data for transmission to the surface.
Application: Enhancing Drilling Efficiency
These precision components are integral to the success of MWD/LWD operations across various drilling applications:
- Vertical & Horizontal Well Drilling: Providing accurate trajectory data for precise wellbore placement.
- Pulse Drilling Tools: Serving as the core mechanism for generating the mud pulses used in data transmission.
- Hydraulic Oscillators: Contributing to the reliable function of tools designed to reduce friction and improve weight transfer.
- MWD/LWD Drilling Tools: Protecting sensors and ensuring the reliable generation and transmission of critical formation evaluation data (LWD) and directional data (MWD).
By ensuring the reliable function of these tools, Zhuzhou Century Tool's poppet orifices directly contribute to optimized drilling performance, reduced non-productive time (NPT), andsten Carbide Shroud & Liner Assemblies
Further safeguarding the pulser mechanism and enhancing tool longevity, Zhuzhou Century Tool offers robust Tungsten Carbide Shroud & Liner Assemblies. These components act as the first line of defense against the erosive drilling fluid environment.
- Material Excellence: Manufactured from premium tungsten carbide (often WC-Co or WC-Ni based), these assemblies offer unparalleled hardness and wear resistance.
- Non-Magnetic Properties: Crucially, these components can be engineered to be non-magnetic, ensuring they do not interfere with sensitive magnetic sensors within MWD/LWD tools. Customized Dimensions:* Available in key industry-standard diameters (e.g., 3.44", 4.125", 5.25") and configurations as Fixed Mount assemblies, designed for seamless integration into Bottom Hole Assemblies (BHAs). Custom sizes and designs are a core competency.
- Function: They provide a durable barrier, protecting the more vulnerable internal parts of the pulser system from direct fluid impingement and abrasion, thereby extending the operational life of the entire MWD/LWD tool.
Technical Specifications & Support
- Product Types: Cemented Nickel Poppet Orifice (470/475/650/675roud & Liner Assy (Fixed Mount).
- Key Sizes: Shroud/Liner diameters commonly include 3.44", 4.125", 5.25" (customization available).
- Material: Nickel-base alloy (Poppet), Tungsten Carbide (Shroud/Liner - non-magnetic options).
- Place of Origin: Hunan, China.
- Condition: New.
- Warranty: 3 Months.
- Support: Online technical support provided.
- Quality Assurance: Machinery Test Report available; Video outgoing-inspection can be provided upon request.
- ** Engineered for reliability and ease of operation within demanding drilling environments.
Zhuzhou Century Tool Co., Ltd. is a specialized manufacturer with a proven track record in producing high-quality wear-resistant components. Our expertise extends to:
- Advanced Materials: Mastery in cemented carbides (tungsten carbide) and specialized alloys (like nickel-base).
- Precision Manufacturing: Utilizing advanced equipment and skilled technicians for tight tolerances and consistent quality.
- Global Reach: Supplying reliable products to the oil & gas, mining, and industrial sectors in over 50 countries.
- ** core strength, offering tailored solutions for specific downhole challenges and tool designs.
- Commitment: Dedicated to providing cost-effective, high-performance solutions for extreme working conditions, backed by a commitment to continuous improvement in product quality and service.
Your Partner for Downhole Durability
For drilling operations demanding maximum reliability from their MWD/LWD pulser systems, the choice of critical wear components is non-negotiable. Zhuzhou Century Tool's Cemented Nickel Poppet Orifices and Tungsten Carbide Shroud & Liner Assemblies represent a fusion of advanced material science, precision engineering, and practical application knowledge.
We invite you to explore how and improve operational efficiency. Contact Zhuzhou Century Tool Co., Ltd. today to discuss your specific requirements for MWD/LWD pulser components, including custom tungsten carbide solutions. Our team is ready to provide the technical support and reliable products you need for success in the field.
