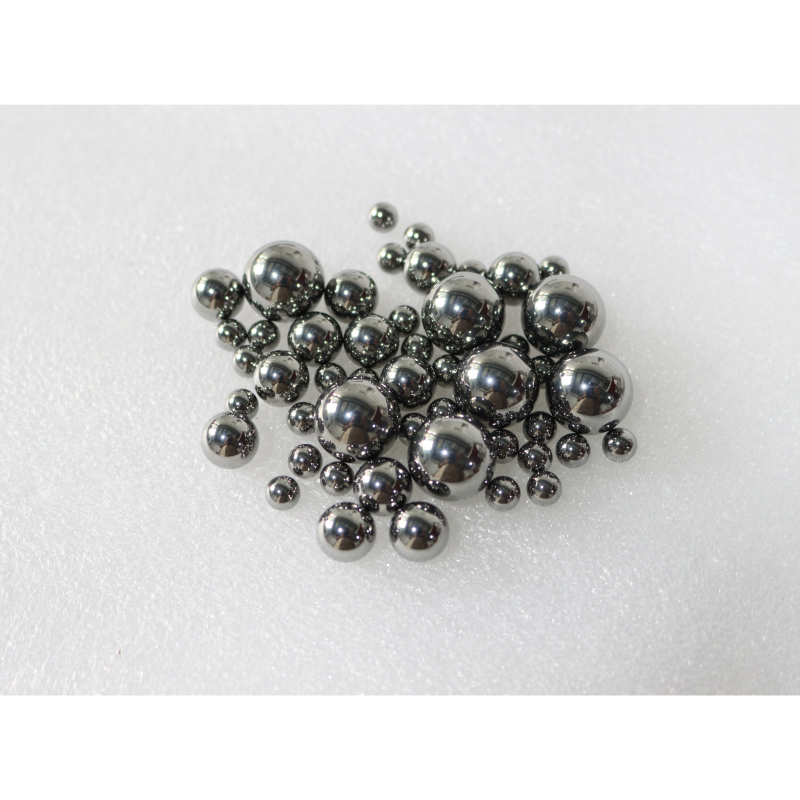

The ball mill jar is an indispensable special accessory for the planetary ball mill. When the planetary ball mill is grinding powder, it filled with grinding balls and samples. Under high-speed operation and friction will generate intense energy among the grinding balls, materials, and the wall of the ball mill jar. Using this energy to achieve a very good crushing effect on the sample, the ball mill jar is exactly the container that provides space for powder grinding.

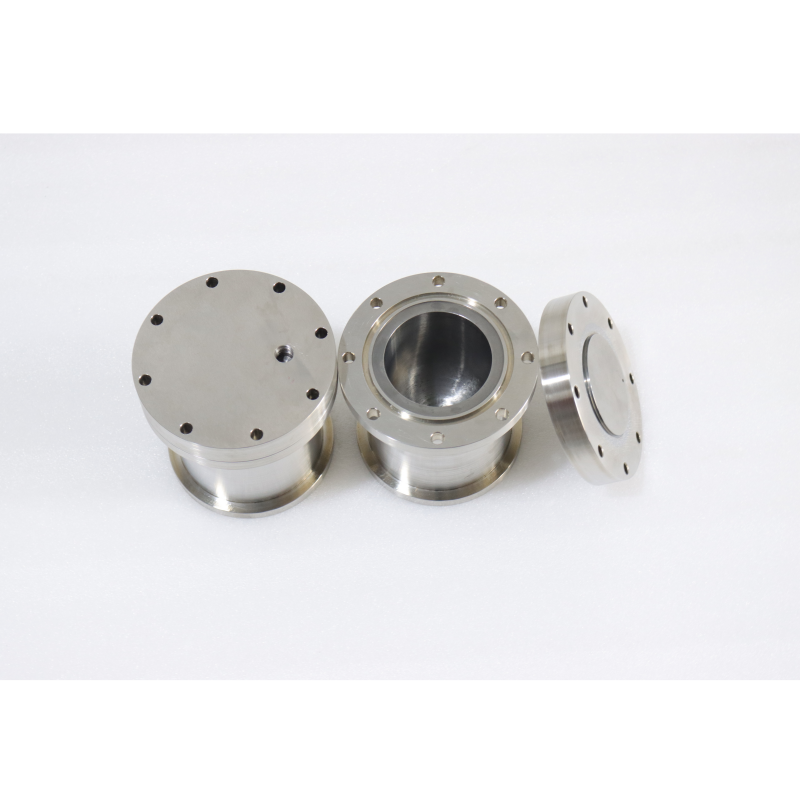

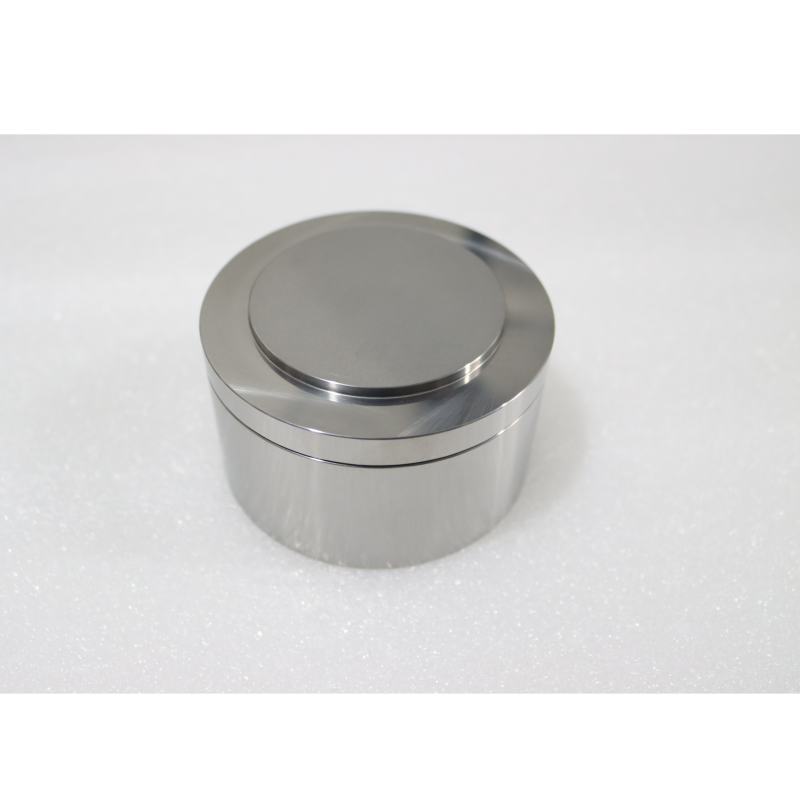

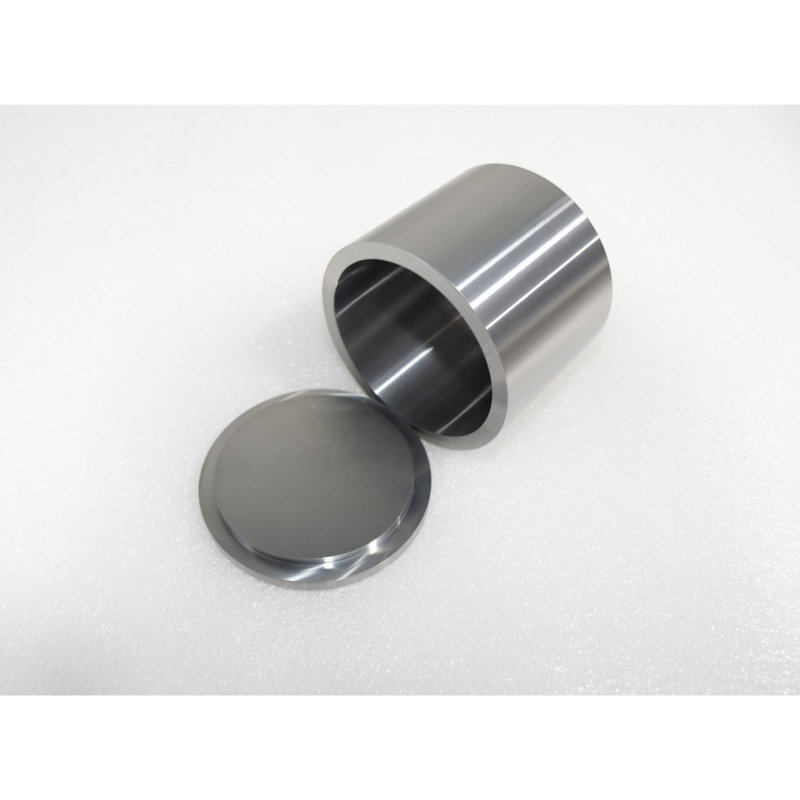

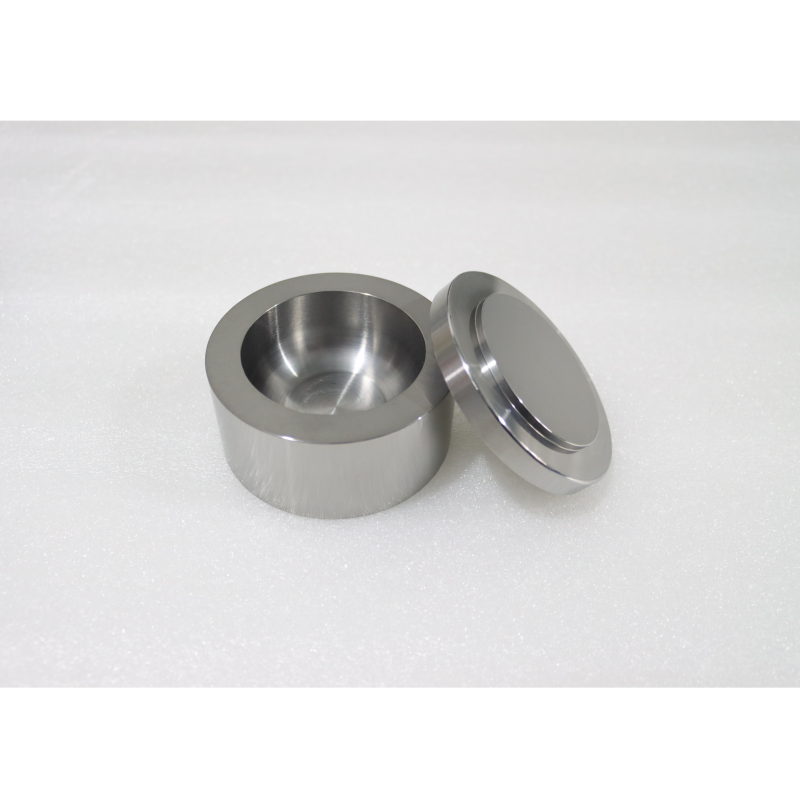

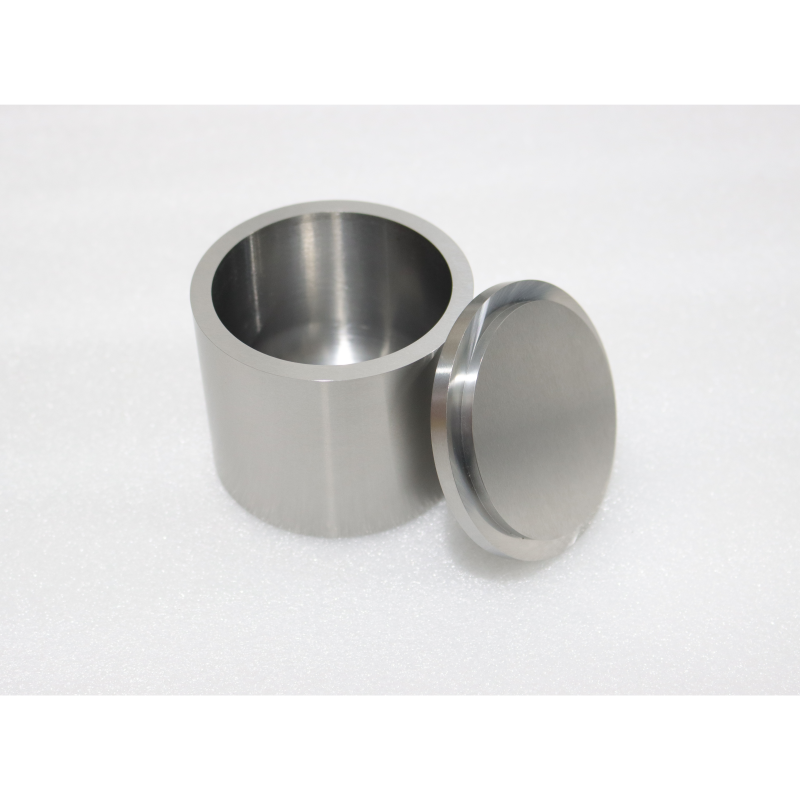

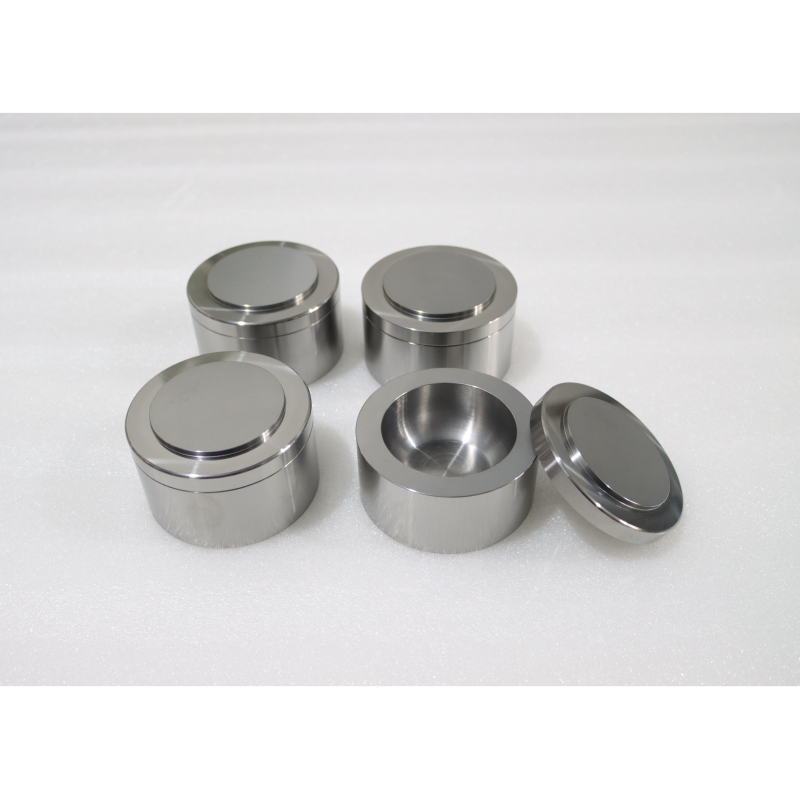

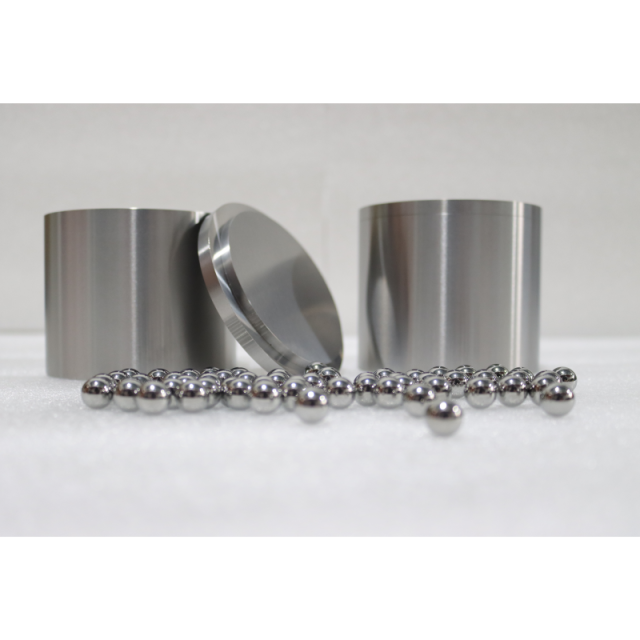

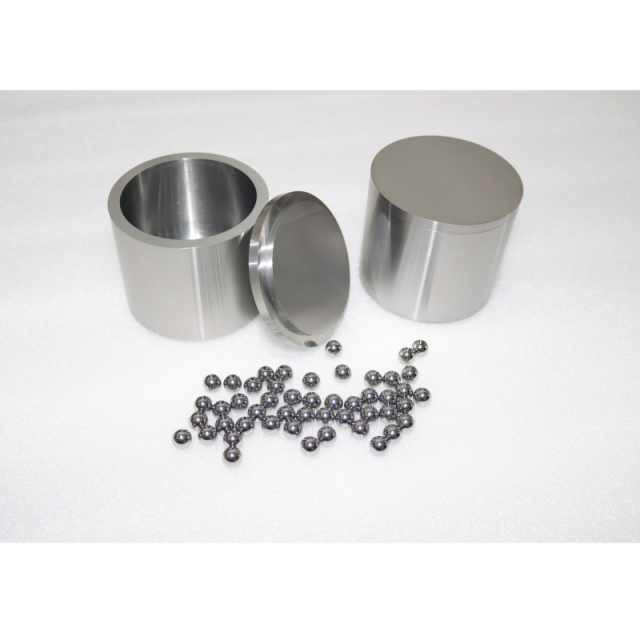

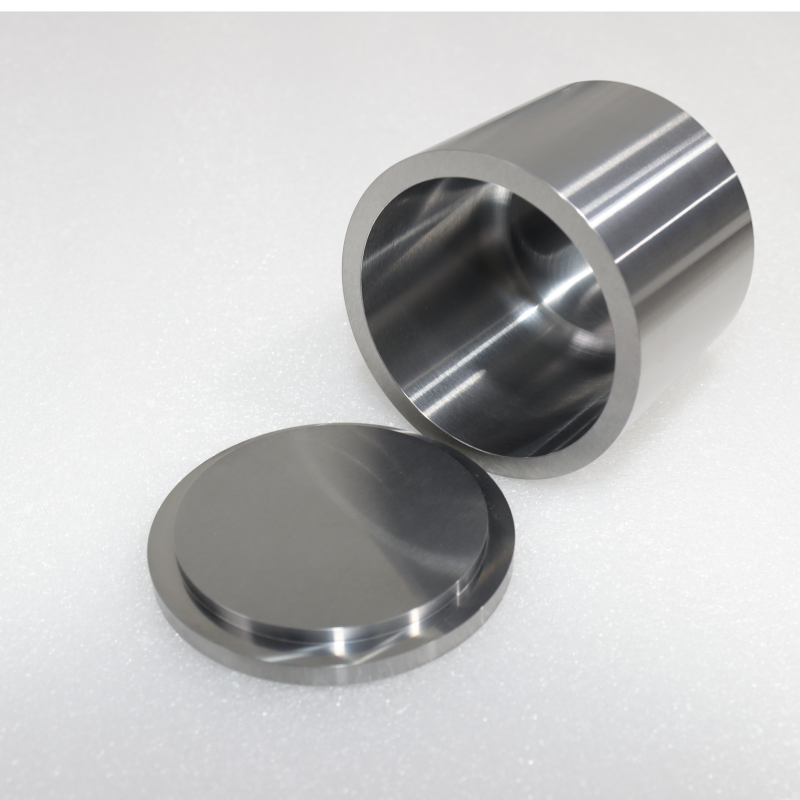

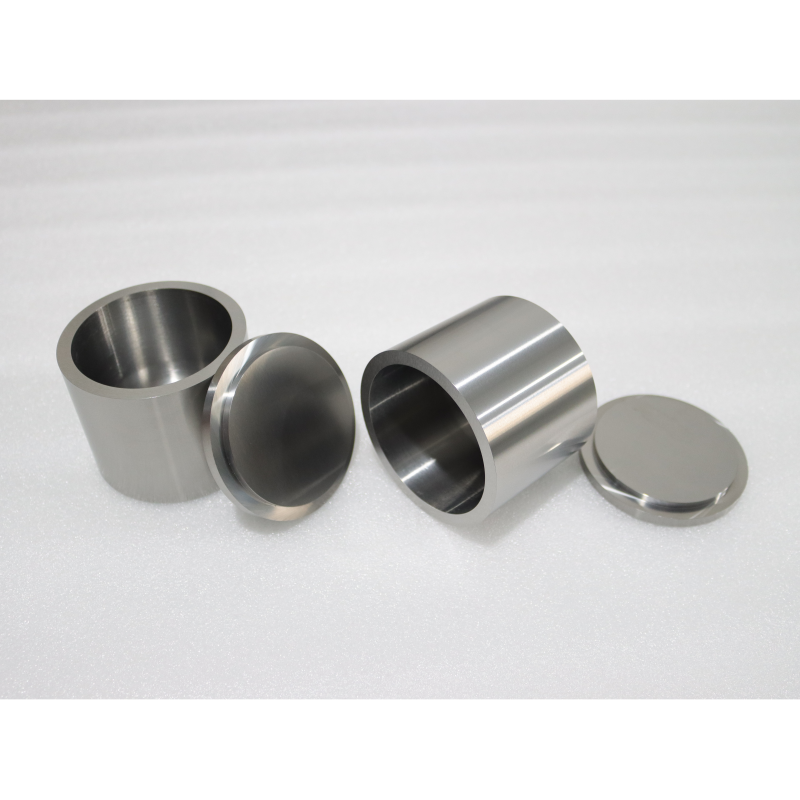

The cemented carbide ball mill jar is used in planetary ball mills to grind cemented carbide powder, diamond, corundum and other high hardness powders.
The ball mill jar is an indispensable special accessory for the planetary ball mill. When the planetary ball mill is grinding powder, it filled with grinding balls and samples. Under high-speed operation and friction will generate intense energy among the grinding balls, materials, and the wall of the ball mill jar. Using this energy to achieve a very good crushing effect on the sample, the ball mill jar is exactly the container that provides space for powder grinding.
The ball mill jar is the container that provides space for the completion of powder grinding. The cemented carbide ball milling jar fills the blank in the planetary ball mill. In the research work of mechanical alloying and some metal powder crushing, ordinary ball milling jar's (such as stainless steel , agate, nylon, corundum ceramics, etc.) hardness is not enough to meet its needs. Therefore, in response to the needs of scientific and technical personnel in many units, ball milling jars made of cemented carbide came into being. In order to meet different needs, Zhuzhou Century Tool Co., Ltd. has developed various specifications such as 50ml, 100ml, 250ml, 1L, etc. up to 30L.
PRODUCT SPECIFICATIONS
Grade
WC%
Co%
Density (g/cm3)
TRS (N/mm2)
Hardness (HRA)
Grain size (μm)
YG06X
94
6
14.8--15.1
2400
91.5
0.8-1.2
YG06A
94
6
14.8--15.1
2150
92.5
0.6-0.8
YG08
92
8
14.6-14.9
2700
89
1.2-1.6
YG10.2
90
10
14.3-14.6
3800
91.7
0.7
YG11
89
11
14.3-14.7
2800
88.5
1.2-1.6
YG12X
88
12
14.2-14.5
3000
89.5
1.0-1.2
YG15
85
15
13.8-14.2
3000
86.5
1.2-1.6
YG20
80
20
13.4-13.8
3100
85
1.2-1.6
Grade
WC%
Ni%
Density (g/cm3)
TRS (N/mm2)
Hardness (HRA)
Grain size (μm)
YN6
94
6
14.5-14.9
2000
90
1.2-1.6
YN9
91
9
14.3-14.6
2300
89
1.2-1.6
YN11
89
11
14.0-14.3
2600
88
1.2-1.6
