Grade ISO
|
Cobalt content %
|
Grain size of WC (μm)
|
Hardness (HRA)
|
Density g/cm3
|
TRS N/mm2
|
|
K05-K10
|
6
|
0.4
|
94
|
14.85
|
≥4000
|
|
K10-K20
|
8
|
0.4
|
93.6
|
14.65
|
≥4000
|
|
K20-K40
|
12
|
0.4
|
92.5
|
14.15
|
≥4200
|
|
K20-K40
|
12
|
0.4
|
93
|
14.2
|
≥3800
|
|
K20-K40
|
10
|
0.6
|
92.3
|
14.4
|
≥3900
|
|
K20-K40
|
10
|
0.8
|
91.8
|
14.4
|
≥3800
|
|
K05
|
7
|
1.0
|
92
|
14.8
|
≥3000
|

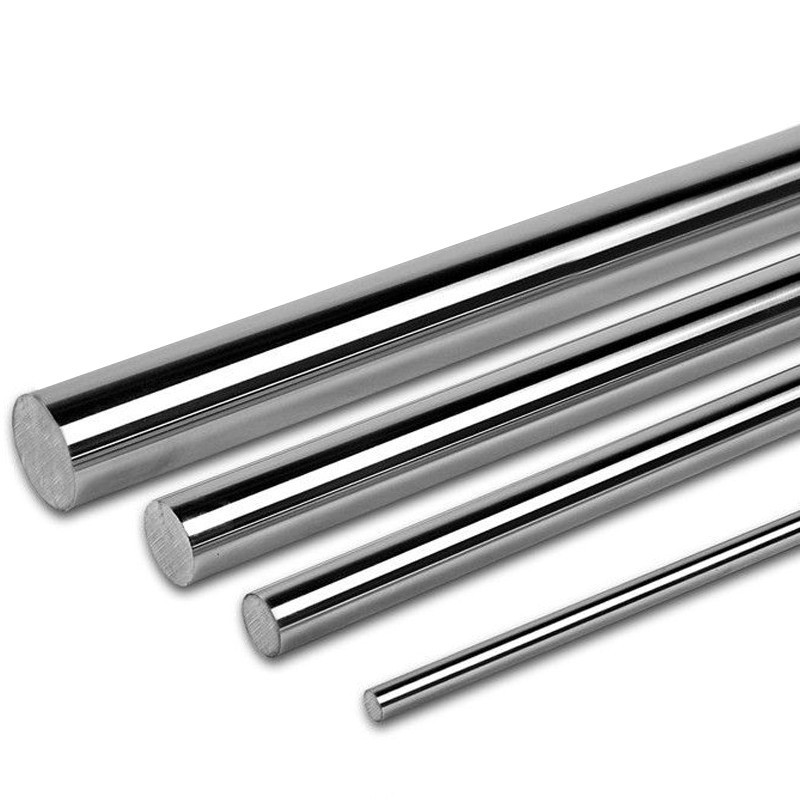

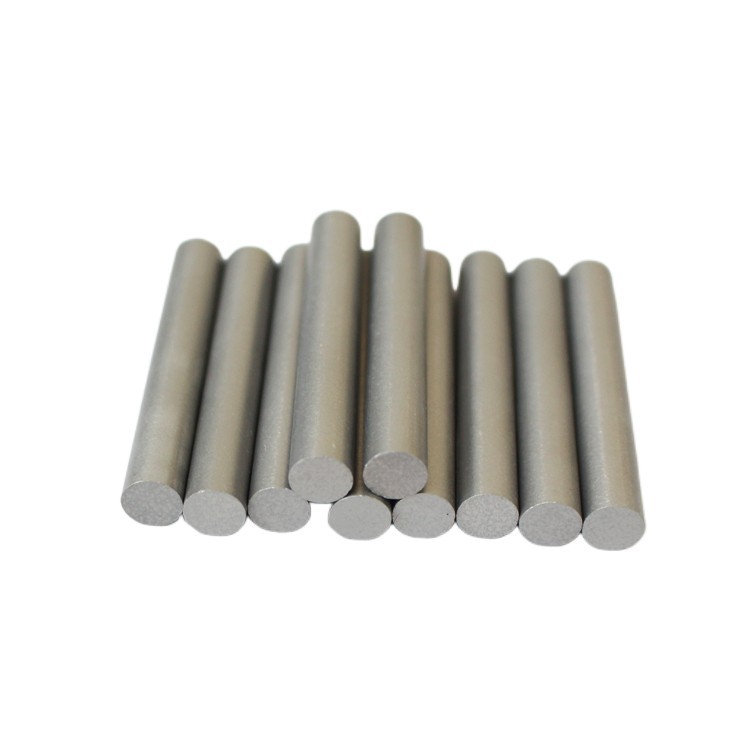

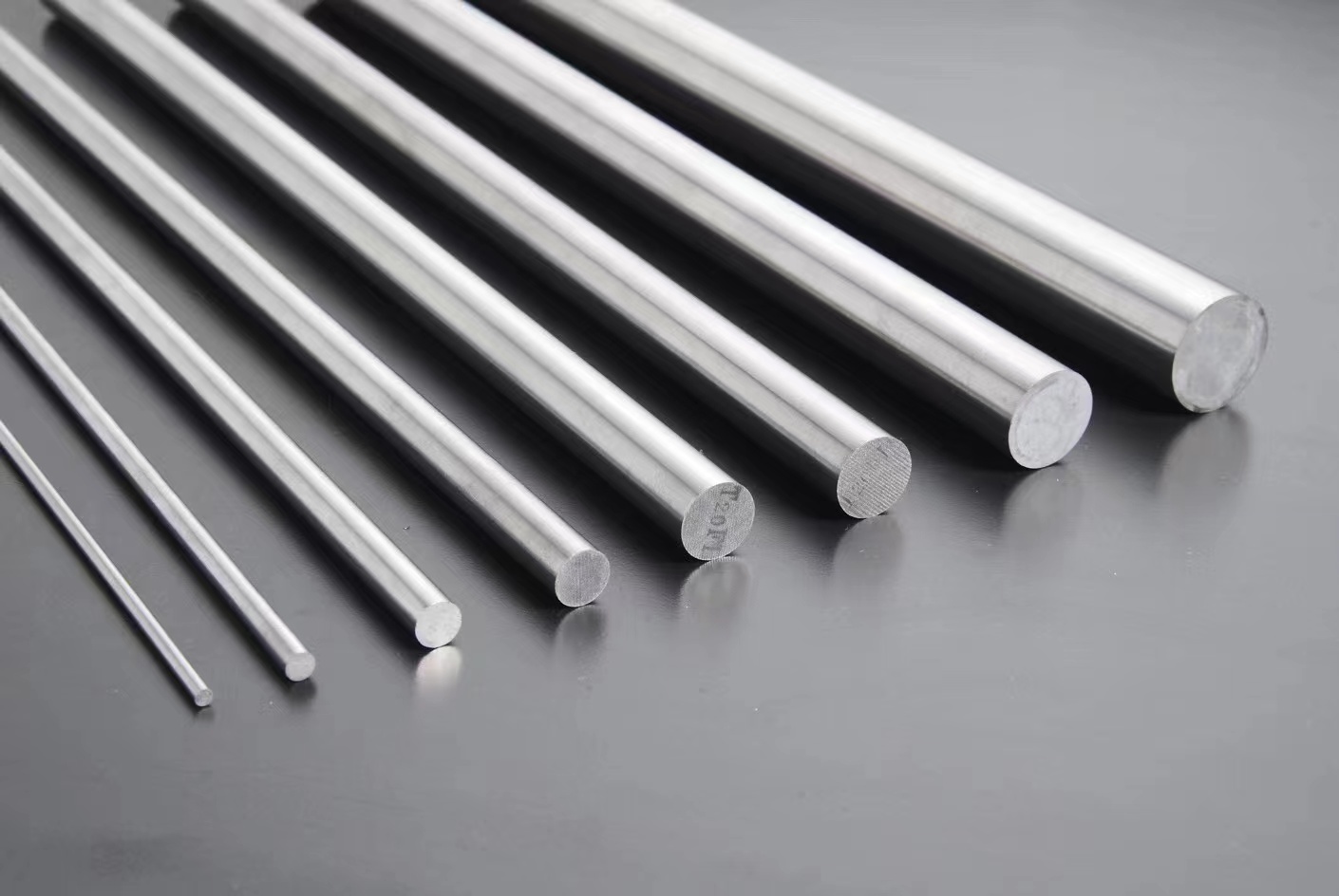

Tungsten carbide rods
Solid tungsten carbide bars can be used for making varioius drill bits, automobile special cutter, printed circuit board ,special cutters, engine special cutters, horologe,processing special cutters, integral vertical milling cutter, graver and etc.
Besides , they can be used for making of cemented carbide stamping head, core bar and perforation tools.
The cemented carbide rods are used for cutting aluminum alloy , cast iron , stainless steel , refractory alloy steel ,nickel-based alloy , titanium alloy and non-ferrous metal , various carbide grades with stable properties have been widely recongnized by worldwide tool makers. We can produced the ungrounded and grounded carbide rods.
Features:
Excellent resistance to corrosive and erosive action of high-temperature acid steam and brine,
* High strength
* High resistance to pitting, crevice corrosion resistance
* High strength to weight ratio
* Weight saving possibilities
* Low modulus, high fracture toughness and fatigue resistance
* Suitability for coiling and laying on seabed
* Ability to withstand hot/dry and cold/wet acid gas loading
* Good workability and weldability
Diameter: 0.5mm-50mm (HIP Extrusion)
Standard Length: cut to length, standard length in 310/330mm

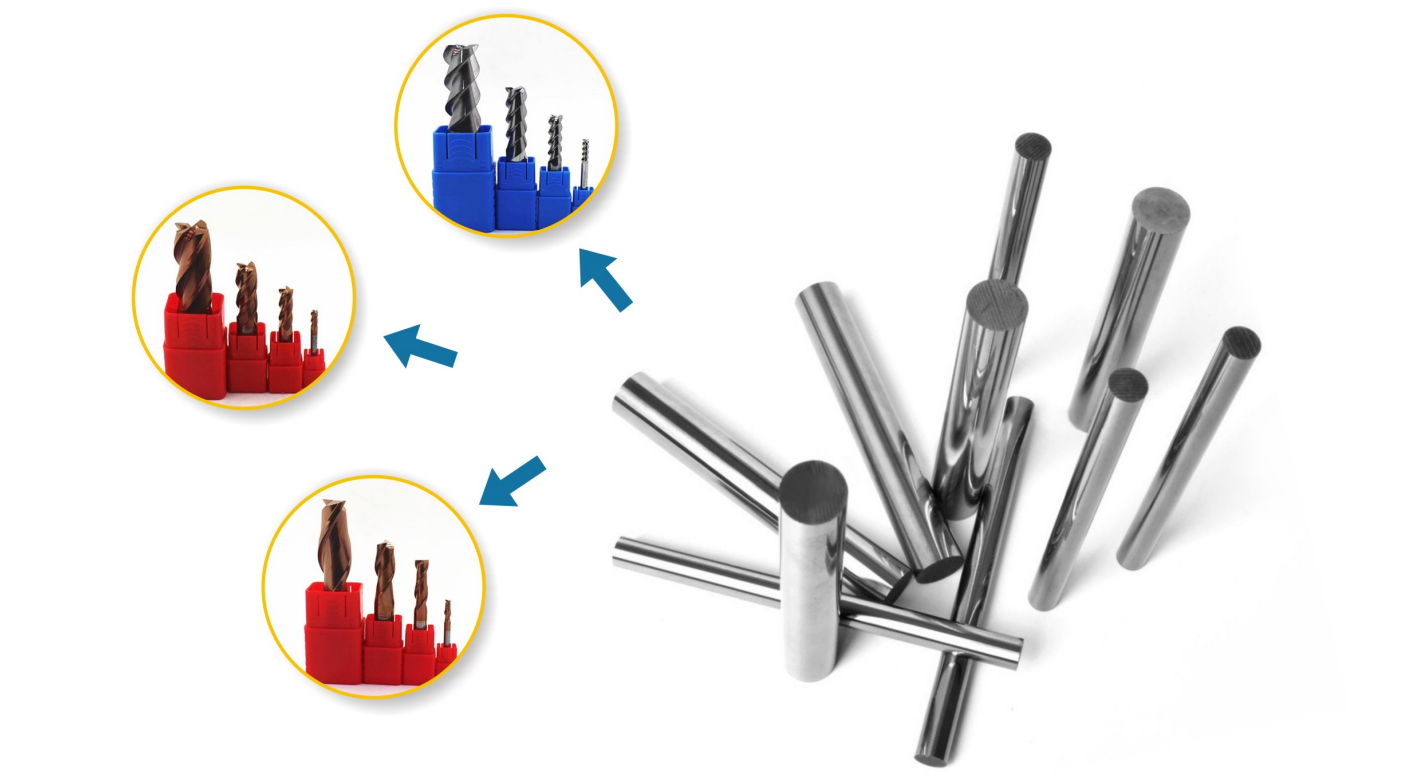

Widely used in endmills, drills, PCB drills, PCB routers etc.
Advantages of our carbide products:
1. high quality durable tungsten carbide welding rods/cemented rods for milling for router bits made from 100% virgin raw
material.
2. produced with advanced equipments and process.
3. all products go through in-process and final inspection.
4. free online technical service available.
5. stable and continuous production ability.
Title: High-Quality Tungsten Carbide Rods for Industrial Applications
Product Description: Our carbide rods are made from high-quality tungsten carbide and are designed for use in a wide range of industrial applications. They are known for their superior strength, durability, and wear resistance, making them ideal for use in cutting tools, drill bits, and other applications where precision and reliability are critical. Our carbide rods are manufactured with the highest quality standards, ensuring consistent performance and reliability.
Features:
High-quality tungsten carbide construction for superior strength, durability, and wear resistance
Precision manufacturing for consistent performance and accuracy
Excellent resistance to corrosion and abrasion
Can be used for various industrial applications
Wide range of sizes available
Customizable to fit specific industrial applications
Benefits:
Provides superior performance and durability compared to other materials
Increases efficiency and productivity of industrial projects
Helps reduce downtime and maintenance costs
Can be customized to fit specific industrial applications
Offers a strong and reliable foundation for cutting tools and drill bits
Applications:
Manufacturing cutting tools, including end mills, drills, and reamers
Metalworking and precision machining
Woodworking and carpentry
Mining and drilling
Oil and gas exploration
Aerospace and defense industries
Sizes Available:
Diameter: 2mm - 25mm
Length: 330mm - 600mm
Custom sizes available upon request
Packaging Details:
1 piece per box
Custom packaging available upon request
Ordering Information:
MOQ: 10 pieces
Lead time: 7-14 days
Payment terms: T/T, L/C, Western Union, PayPal
If you have any questions or would like to place an order, please feel free to contact us. We're confident that our carbide rods will exceed your expectations and help you achieve outstanding results in your industrial applications.
