Brazed tools, also called carbide-tipped lathe tool bits and single-point brazed carbide-tipped
tools, are used for metal shaping on lathes. These single-point tools have a cutting edge at one

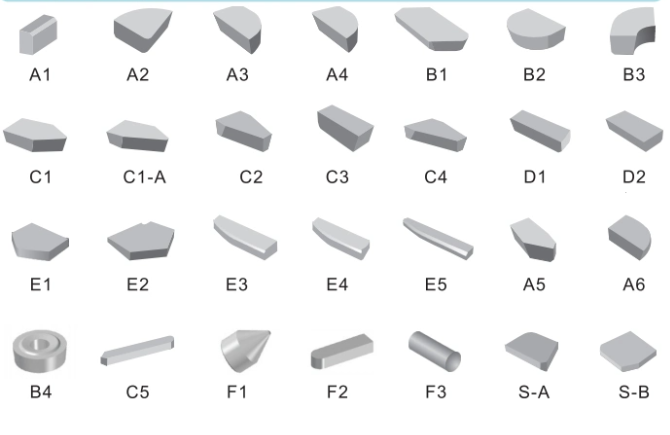

end that is a carbide tip brazed to a steel shaft. They come in multiple geometry styles for
different cutting applications

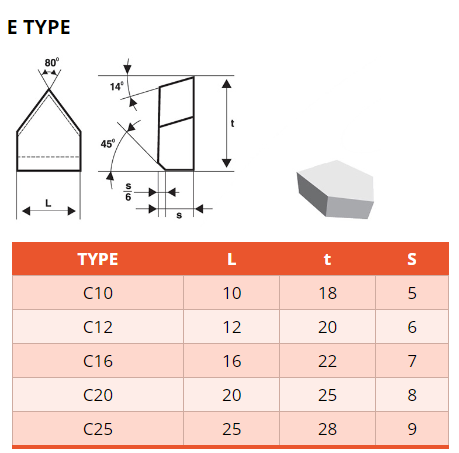

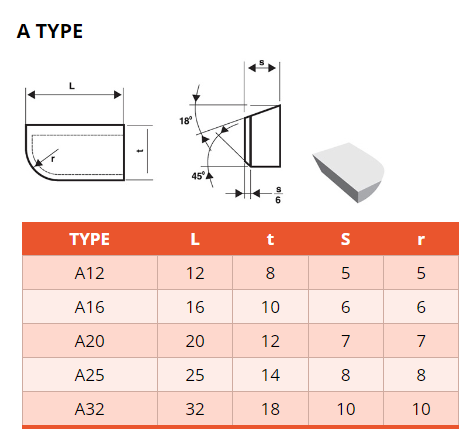

Our equipment, versatility, and experience, allow us to offer much

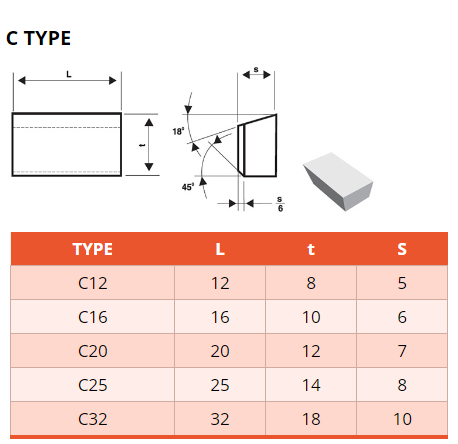

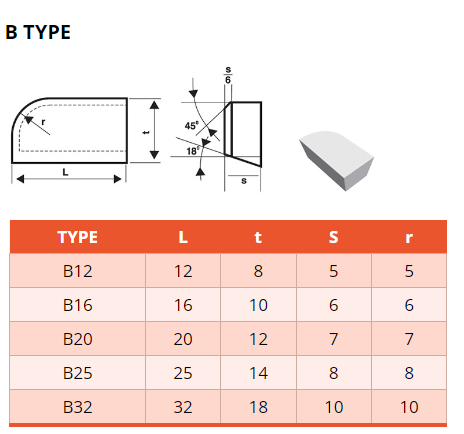

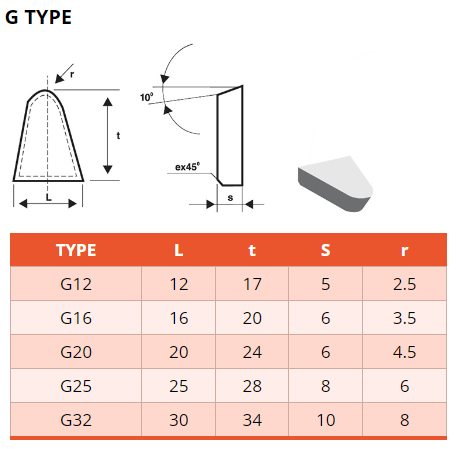

more than the standard geometry presented above.

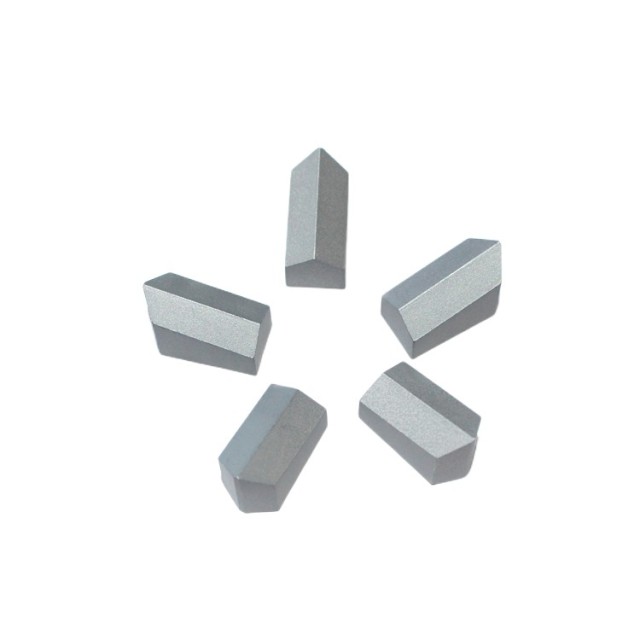

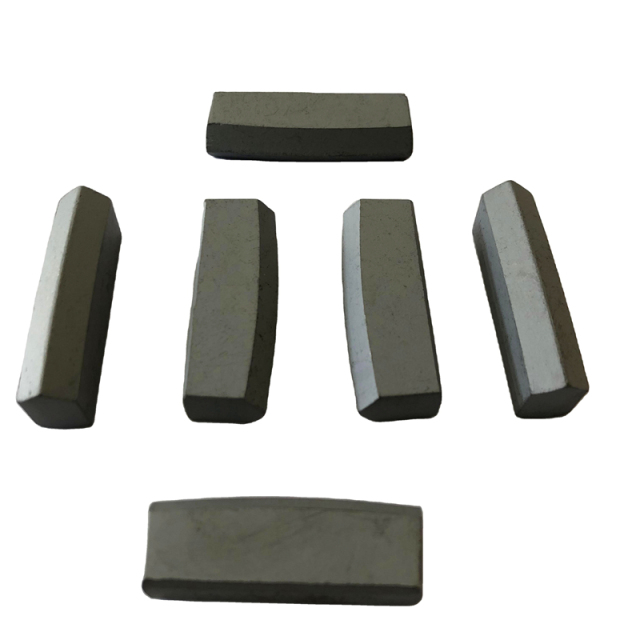

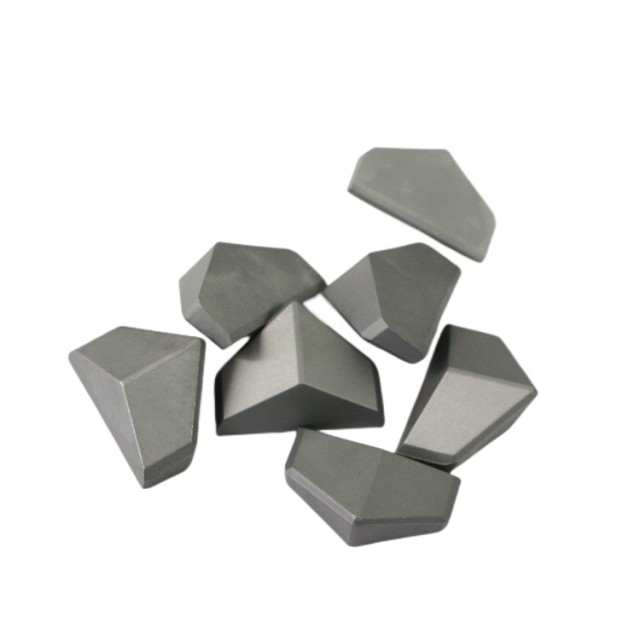

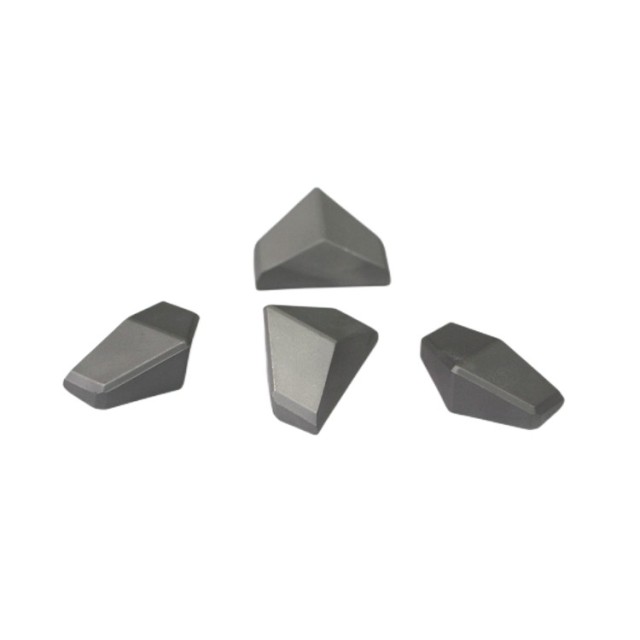

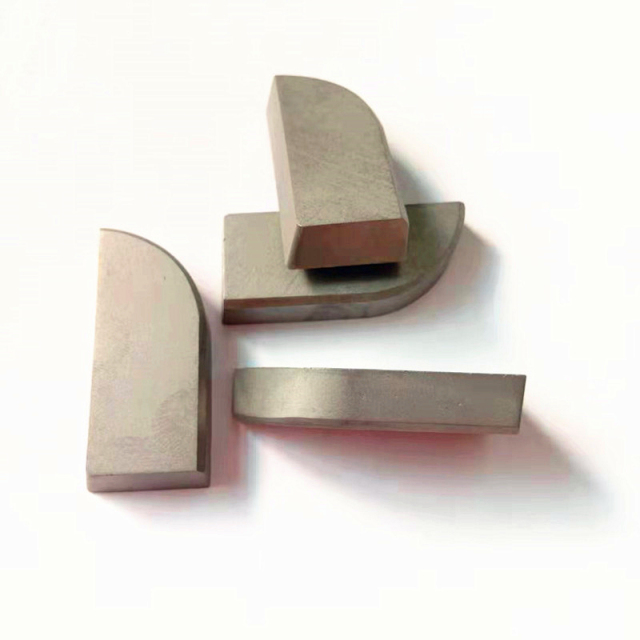

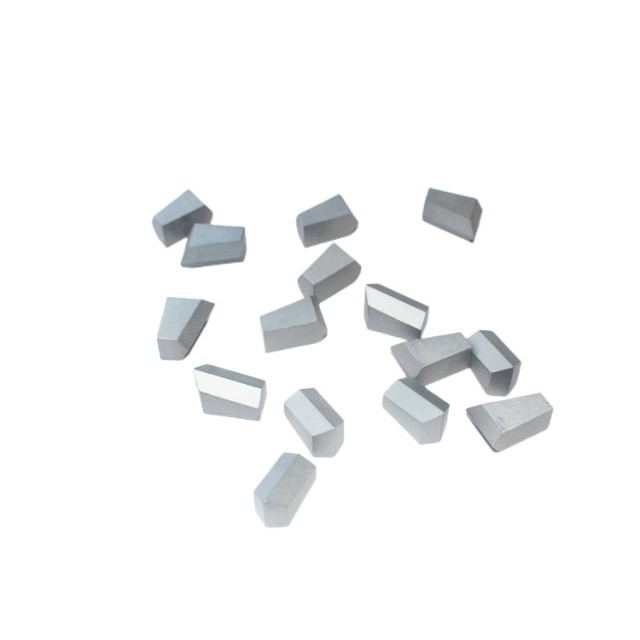

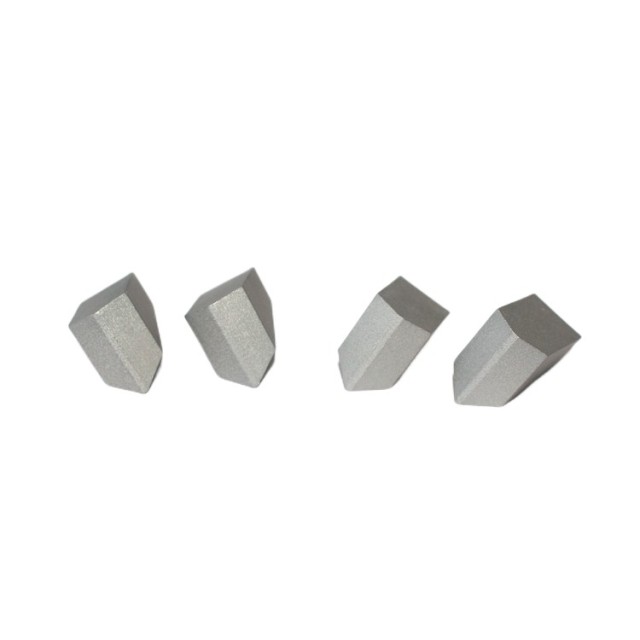

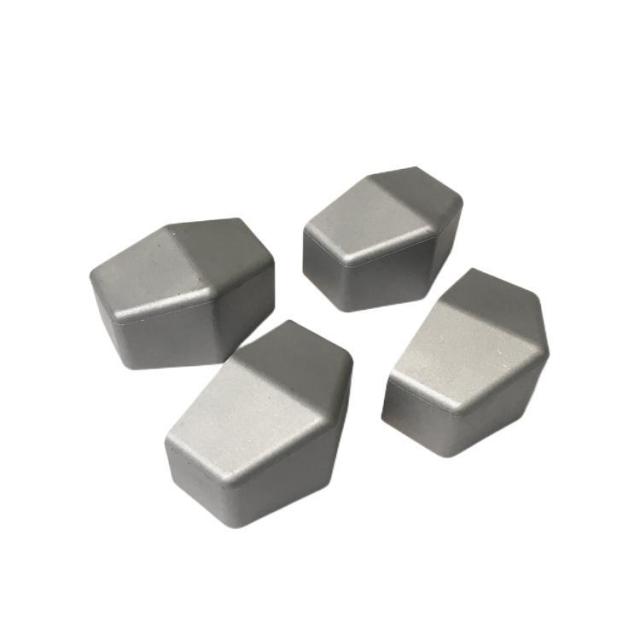

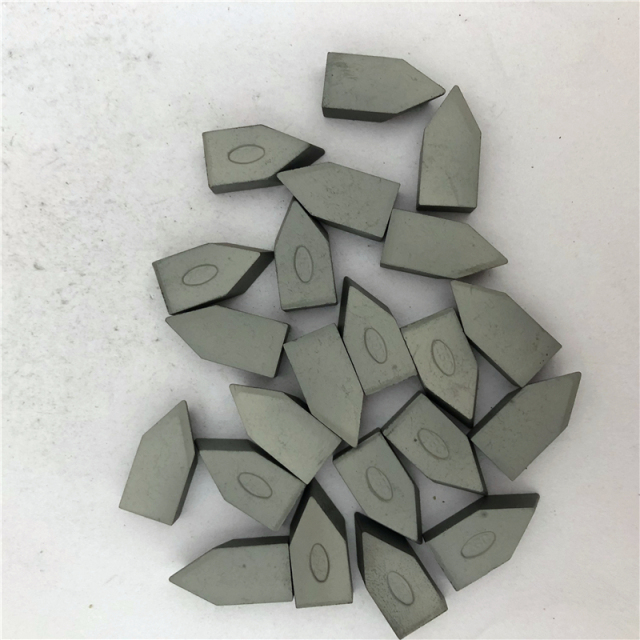

K10/K20/K30/P20/P30 cemented tungsten carbide tips brazed carbide tips for lathe turning tools
Zhuzhou Century Tool manufactures a comprehensive line of brazed tips in a wide range of grades for metalworking applications, including grades for machining materials from steels and cast irons to nonferrous metal etc.
1. Product Application:
Brazed tools, also called carbide-tipped lathe tool bits and single-point brazed carbide-tipped
tools, are used for metal shaping on lathes. These single-point tools have a cutting edge at one
end that is a carbide tip brazed to a steel shaft. They come in multiple geometry styles for
different cutting applications
Our equipment, versatility, and experience, allow us to offer much
more than the standard geometry presented above.
3. Product Specification:
Available in a variety of metal cutting grades to fit your individual needs.
|
Grade |
ISO grade |
Density | Hardness | TRS |
|
(g/cm3) |
(HRA) |
(Mpa) |
||
|
YG6 |
K20 |
14.95 |
91.0 |
1800 |
|
YG6X |
K10 |
14.95 |
92.0 |
1800 |
|
YKM6A |
K10 |
14.95 |
92.5 |
1800 |
|
YG8 |
K30 |
14.7-14.8 |
90.0 |
1950 |
|
YT5 |
P30 |
13 |
90.8 |
1900 |
|
YT14 |
P10-20 |
11.5 |
91.5 |
1500 |
|
YT15 |
P10-20 |
11.3 |
91.8 |
1450 |
|
YW1 |
M10-20 |
13.1 |
91.5 |
1600 |
|
YW2 |
M10-20 |
13.1 |
91.0 |
1600 |
|
YS25 |
P25 |
12.8 |
91.5 |
1900 |
|
YC30S |
P30 |
12.8 |
91.0 |
2000 |
|
ZP35 |
P35 |
12.8 |
91.0 |
2000 |
|
YC40 |
P35 |
13.2 |
90.0 |
1850 |
4. Reference Packing:
Plastic boxes inside with carton outside. Other packaging upon request.
5.Quality control system:
Every batches of material will be tested in density, HRA, TRS and magnetic saturation,
test report will be kept in our files.
We have a constant quality checks accompany the overall production process of the tungsten
carbide to assure our customers are receiving the highest quality carbide in the industry.
