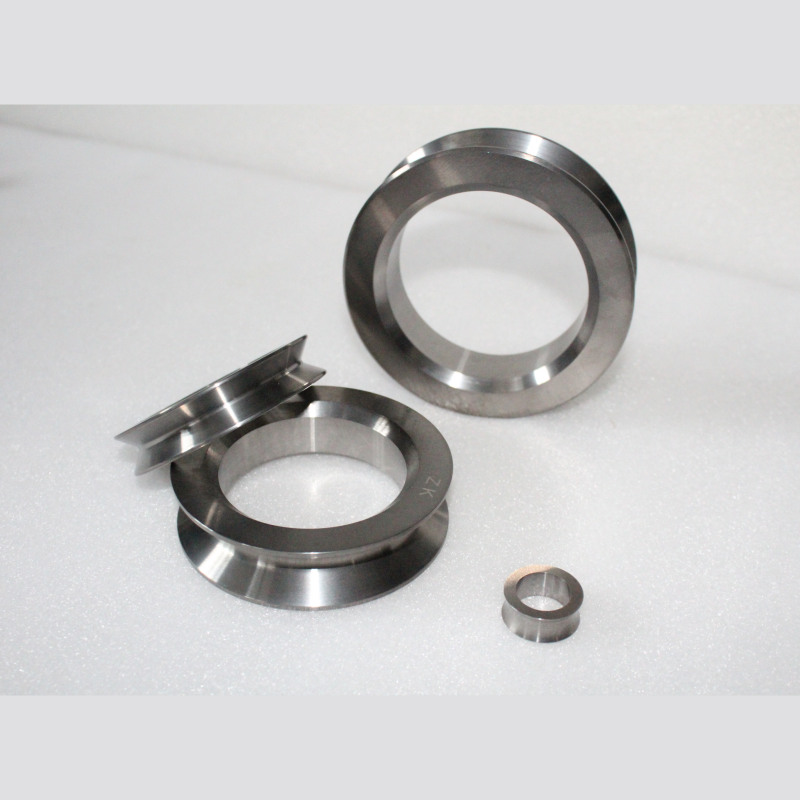

Our tight-tolerance tungsten carbide wire drawing dies are engineered to meet the stringent demands of high-speed wire drawing operations. Utilizing premium, sub-micron carbide grades and advanced precision-lapping technology, ZZCT dies deliver superior wear resistance and exceptional surface finish. Our solutions are designed to significantly reduce production downtime and ensure consistent diameter control for your drawn wire.
Superior Wear Resistance: Our specialized carbide formulations provide extreme hardness and toughness, ensuring die geometry remains stable over an extended service life even under aggressive drawing conditions.
Precision Geometry & Mirror Finish: Every die is manufactured with an optimized internal profile and mirror-polished surface finish (Ra $\leq$ 0.1 $\mu$m). This minimizes friction, prevents sample adhesion, and ensures superior wire guidance.
Reduced Operational Downtime: By increasing the intervals between die replacements, our high-durability solutions reduce production stoppages, lower tooling costs, and enhance overall equipment efficiency (OEE).
Custom Built-to-Print Manufacturing: We offer full custom geometric configurations to match your specific wire material (Steel, Copper, Aluminum, Stainless Steel) and drawing speed requirements.
| Parameter | Specification | Description |
| Material Grade | High-Density Sub-Micron Carbide | Optimized for impact toughness & erosion resistance. |
| Hardness (HRA) | 89.0 - 92.0 HRA | Extreme hardness to withstand high-velocity forces. |
| Tolerance | $\leq$ 0.005mm (Customizable) | Precise concentricity and profile control. |
| Surface Finish (Ra) | Mirror-Finish (Ra $\leq$ 0.1 $\mu$m) | Minimizes friction & optimizes flow dynamics. |
| Die Profiles | Entrance Angle, Bearing Length, Exit Angle | Custom engineered for wire material & drawing speed. |
| Applications | Steel, Copper, Aluminum, Stainless Steel | Versatile configurations for diverse wire materials. |
The contrast between standard components and ZZCT’s precision engineering is clear when analyzing fluid and wire flow dynamics:
Standard Geometry (Erosion Vulnerability): Typical designs often result in high turbulent flow and inconsistent pressure distribution. This leads to increased friction, premature erosion, and inconsistent wire guidance, directly affecting your final wire quality.
ZZCT Precision Geometry (Laminar Flow): Our dies feature an optimized internal profile and mirror-polish finish (Ra $\leq$ 0.1 $\mu$m). This design promotes smooth laminar flow, minimizes friction, and ensures perfect concentricity. The result is minimal material leakage, vibration reduction, and significantly lower wear rates compared to standard alternatives.
Ready to optimize your production line with precision-engineered tooling?
Select Your Wire Material: (e.g., Steel, Copper, Stainless)
Upload Your Technical Drawing: (PDF, DXF, IGS formats accepted)
Specify Requirements: (Target diameter, drawing speed, quantity)
